Ikar PLW
Ikar · ProfessionalProduct code: A4064XX30
Hand crank winch for easy lifting and lowering of persons and loads.
Ikar PLW

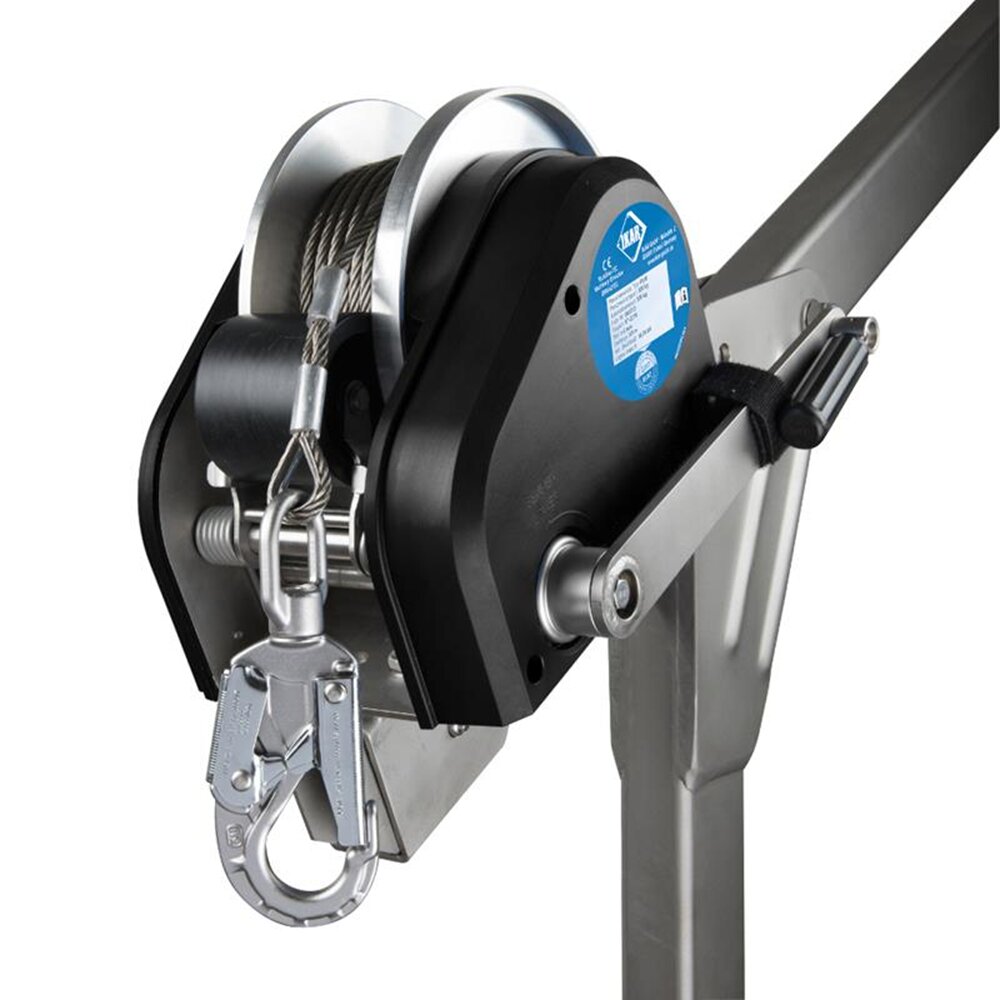

Hand crank winch for easy and jerk-free lifting and lowering of persons and loads according to Directive 2006/42/EG with 30 m stainless steel rope of Ø 6mm (min. breaking load 18.76 kN). SWL is 300 kg.
Winch can be mounted using certified consoles to IKAR DB-A3 Tripod and IKAR AASS-1 Cantilever Arm
Certification: CE, EN 1808
Standards
- EN 1808
Specifications
| Weight | 18.5 kg |
|---|---|
| Size | 230 x 336 x 200 mm (length x width x height) |
| Material | stainless steel 1.4571 (V4A), PA |
| Length | 30 m |
| Working load | max. 300 kg |
