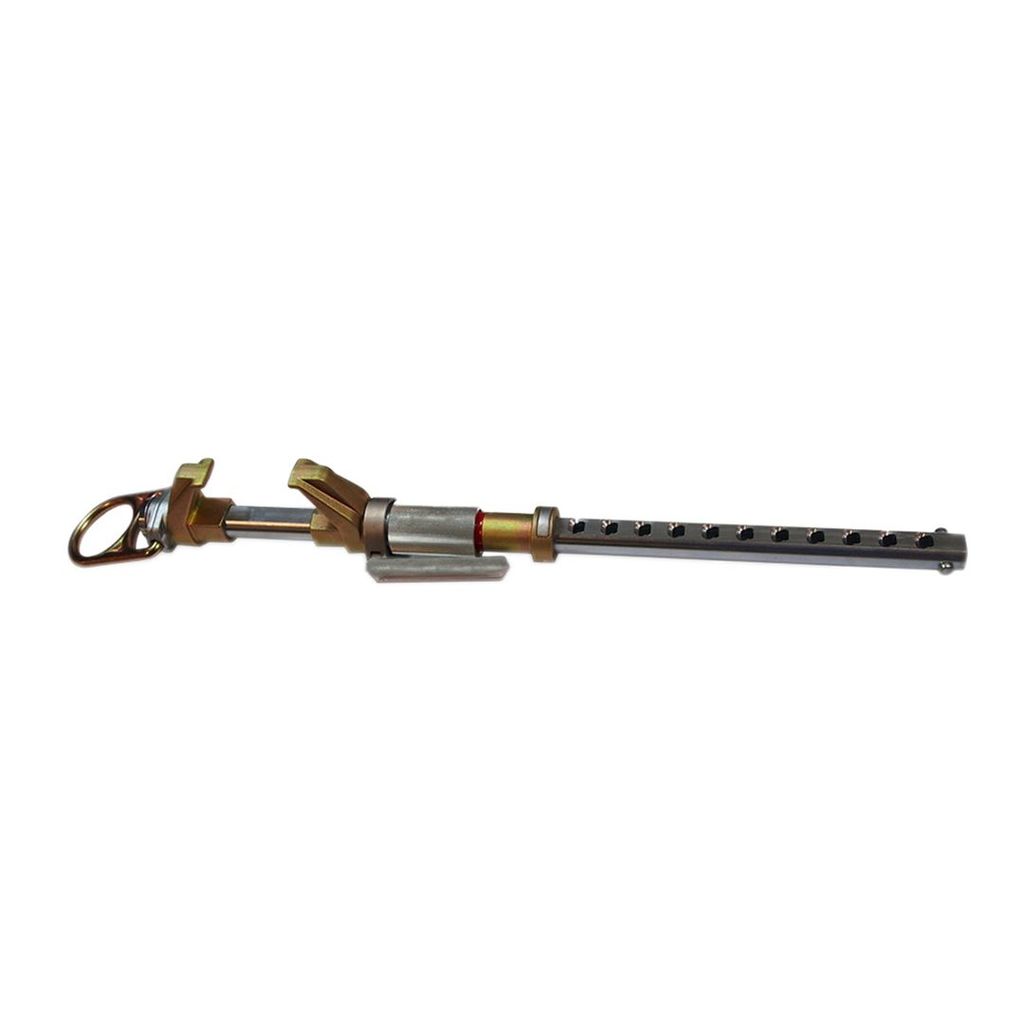

Singing Rock Vertical

  • Singing Rock Vertical, image 1 of 2
  • Singing Rock Vertical, image 2 of 2
  • Show image 1
  • Show image 2

Singing Rock · ProfessionalProduct code: X0077XX00

Door or window anchor point.

Vertical/fixed beam clamp

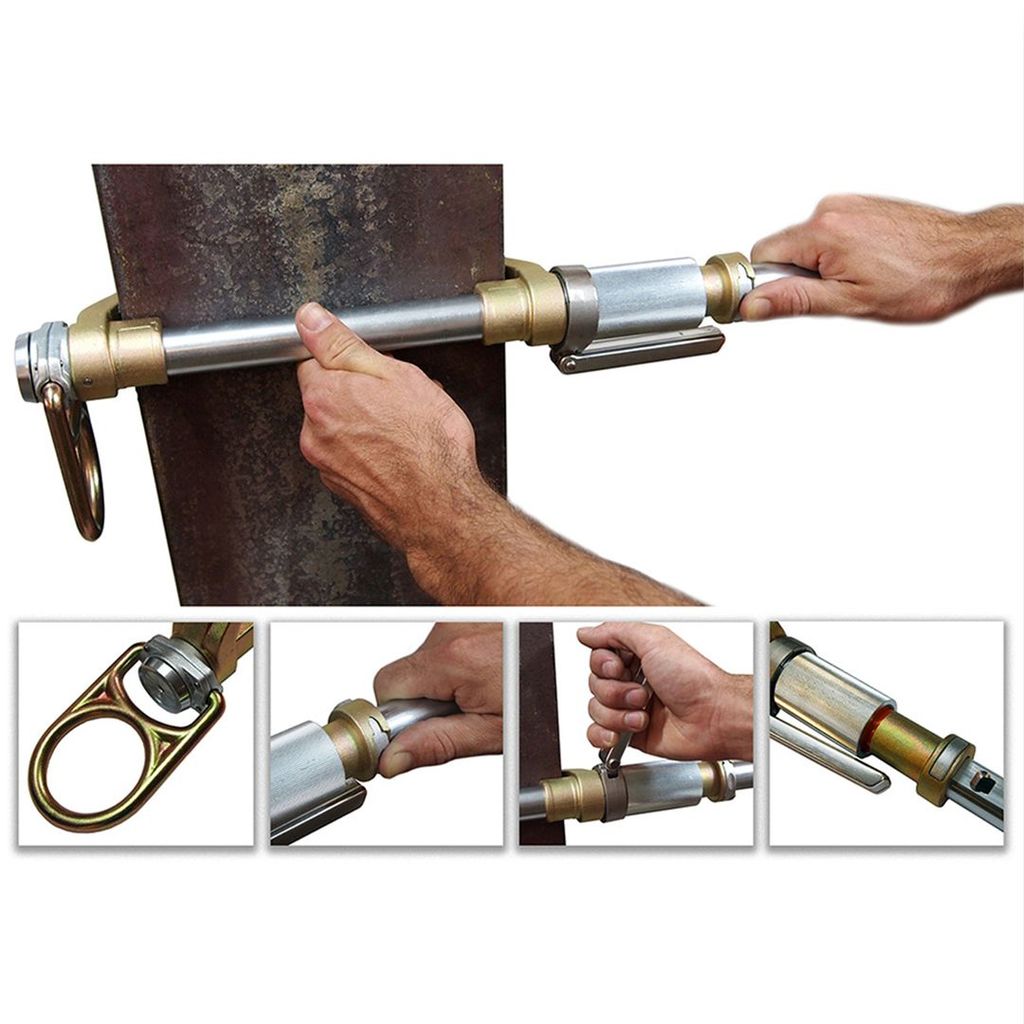

Fixed I-beam anchor is designed to clamp onto a vertical or horizontal I-beam to create a fixed anchor point.

  Certification: CE 0321, EN 795, ANSI Z359.18, ANSI Z359.7, OSHA 1910.66/1926.503

Features

  • zinc plated components
  • stainless Steel D-Ring Mount
  • static tensile strength: 22kN
  • maximum capacity 140kg when used as a single point anchorage
  • Span: 100 - 350 mm
  • Maximum load: 140 kg

Standards

  • EN 795

Specifications

Weight3105 g • 109.5 oz
Strength22 kN
