Ikar HRA
Ikar · ProfessionalProduct code: A4004BS*
Retractable fall arrester.
Ikar HRA
Retractable fall arrester with a galvanised steel cable lifeline and built-in shock absorber, equipped with a two-way rescue/recovery mechanism and double action swivel connector.
After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.
HRA is not suitable for use over a leading edge and has not been edge tested.
Certification: CE 0229, EN 360 EN 1496, ANSI/ASSE Z359.1-2007, ANSI/ASSE Z359.14-2014, CSA Z259.2.2
Features

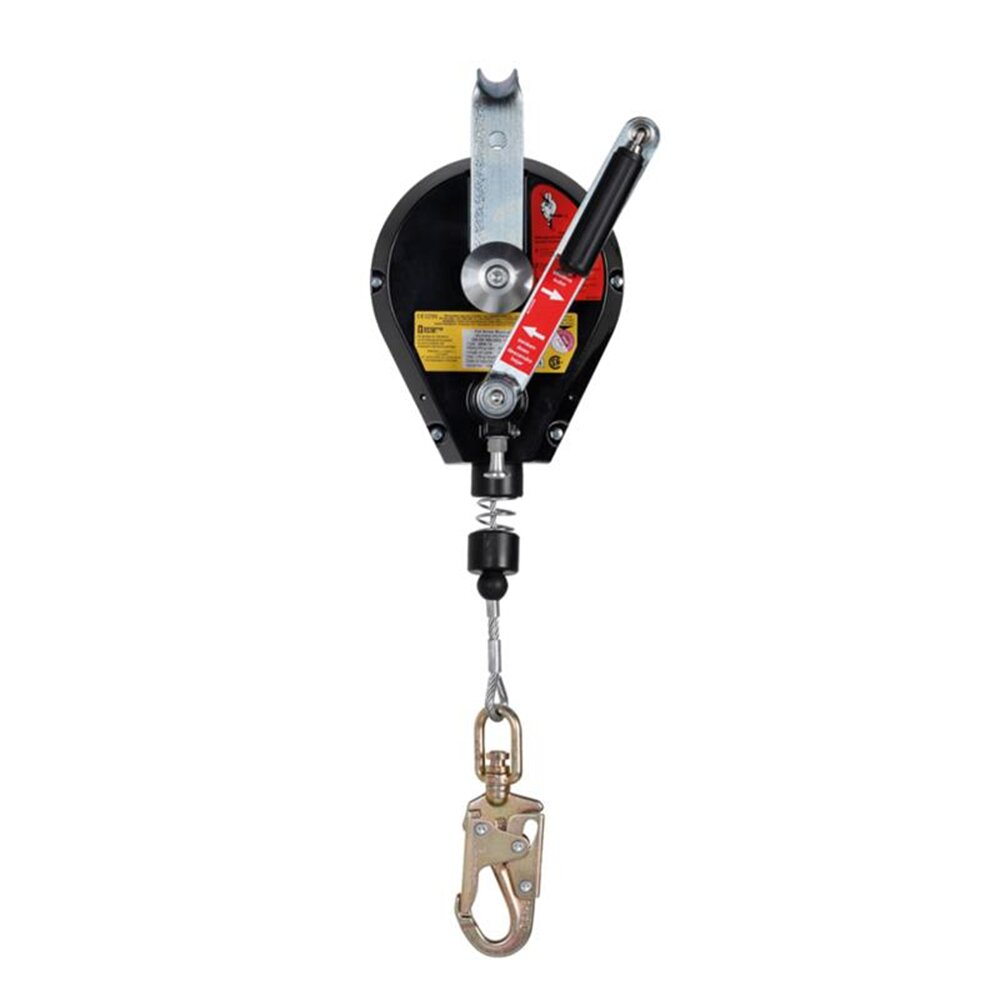

- IKAR HRA 12 / A4004BS12 - length 12 m

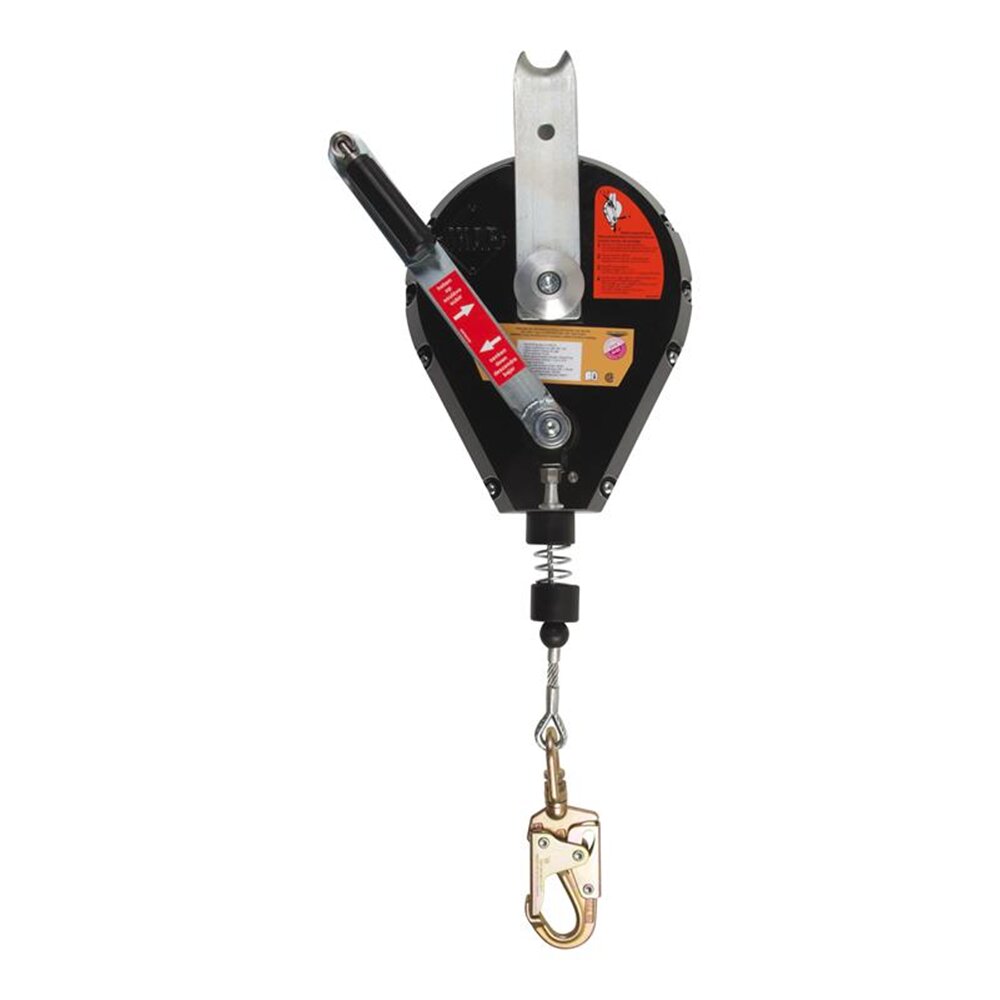

- IKAR HRA 18 / A4004BS18 - length 18 m

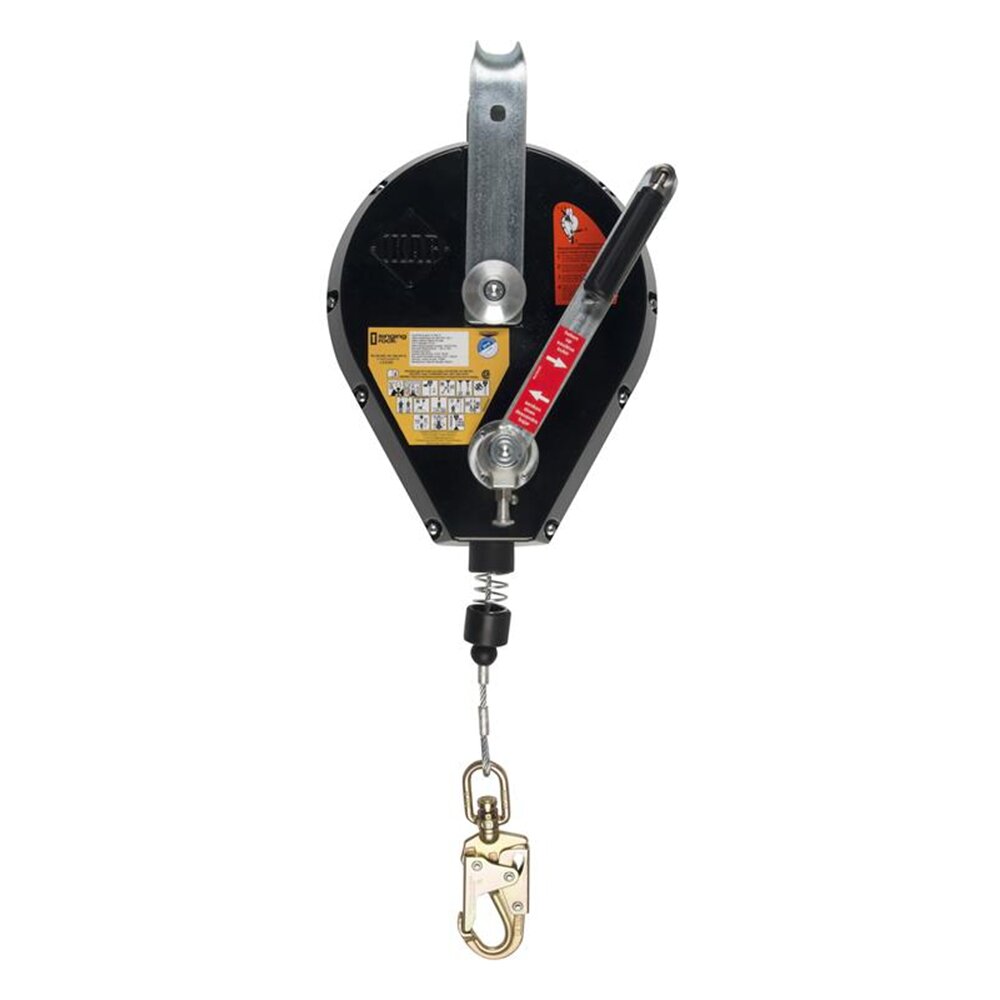

- IKAR HRA 33 / A4004BS33 - length 30 m
- fall arrest device with rescue lifting and lowering facility
- equipped with a release pin and a recovery mechanism operated by a device mounted handle
- lightweight aluminium housing with a galvanised steel cable lifeline
- fixed handle anchor attachment point
- steel double action swivel hook with a fall indicator on the end of the lifeline
Standards
- EN 360
- EN 1496
Specifications
| Weight | 7 / 11.5 / 21 kg |
|---|---|
| Length | 12 / 18 / 30 m (lifeline length) |
| Gate opening (d) | 22 mm |
| Working load | 136 kg |
