Singing Rock EvaQ

Descender and rescue device for height rescue from places.

EvaQ

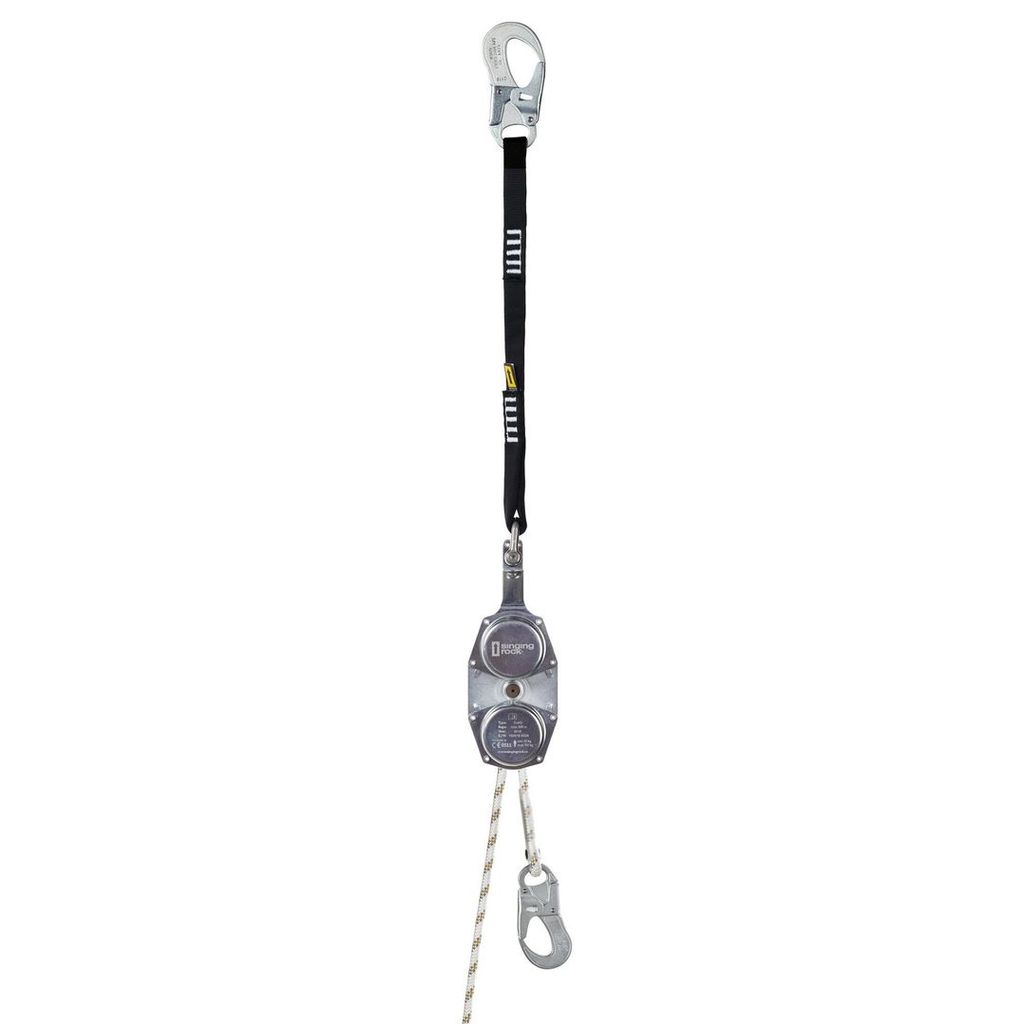

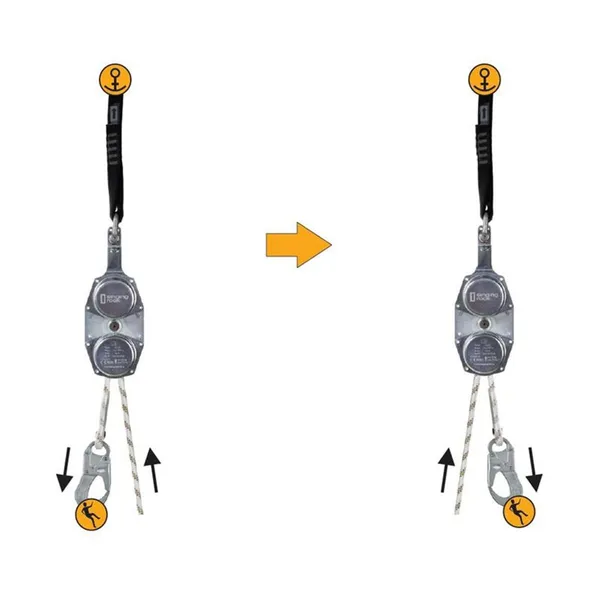

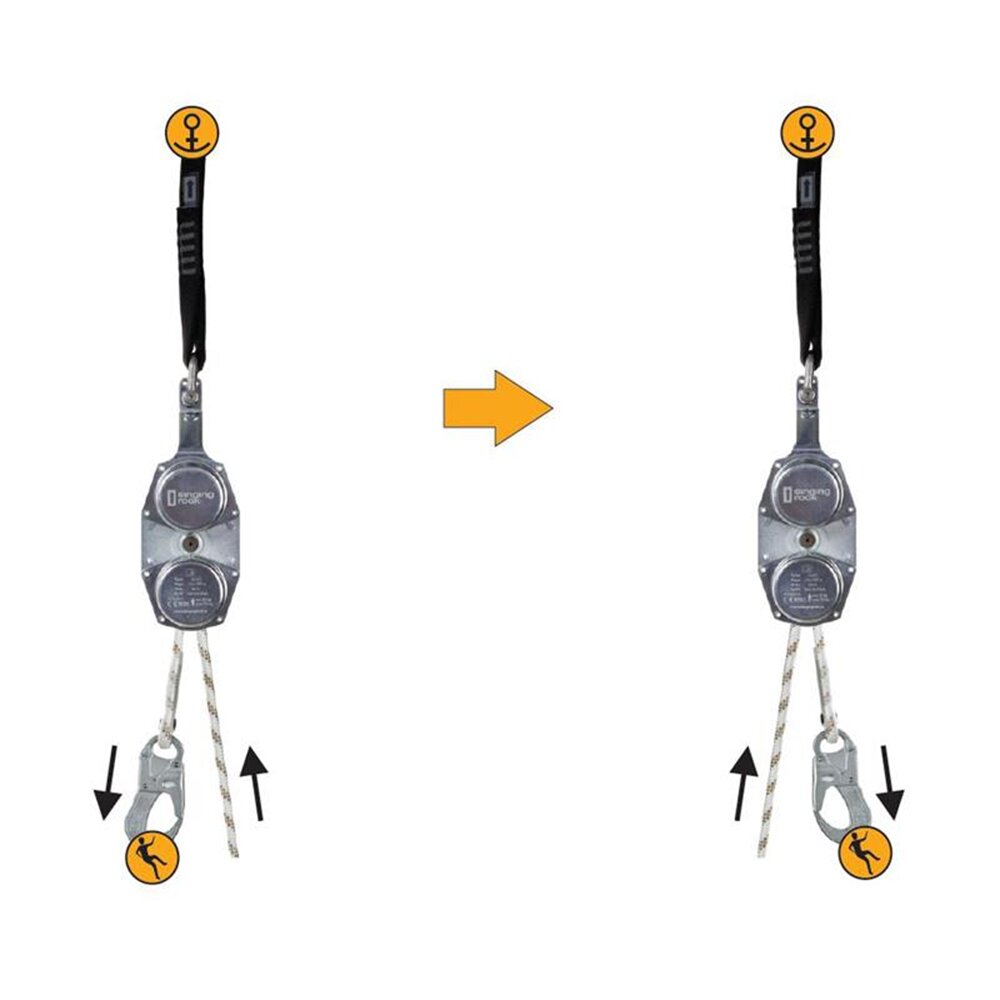

Descender and rescue device for height rescue from places like cable cars, outdoor parks, wind power plants, cranes or skyscrapers. Simple operation offers an additional escape route for quick and efficient self-rescue of several persons using a shuttle system.

Certification: CE 0511, EN 341:2011-1B

Features

designed for a working load of 150 kg (1 person)

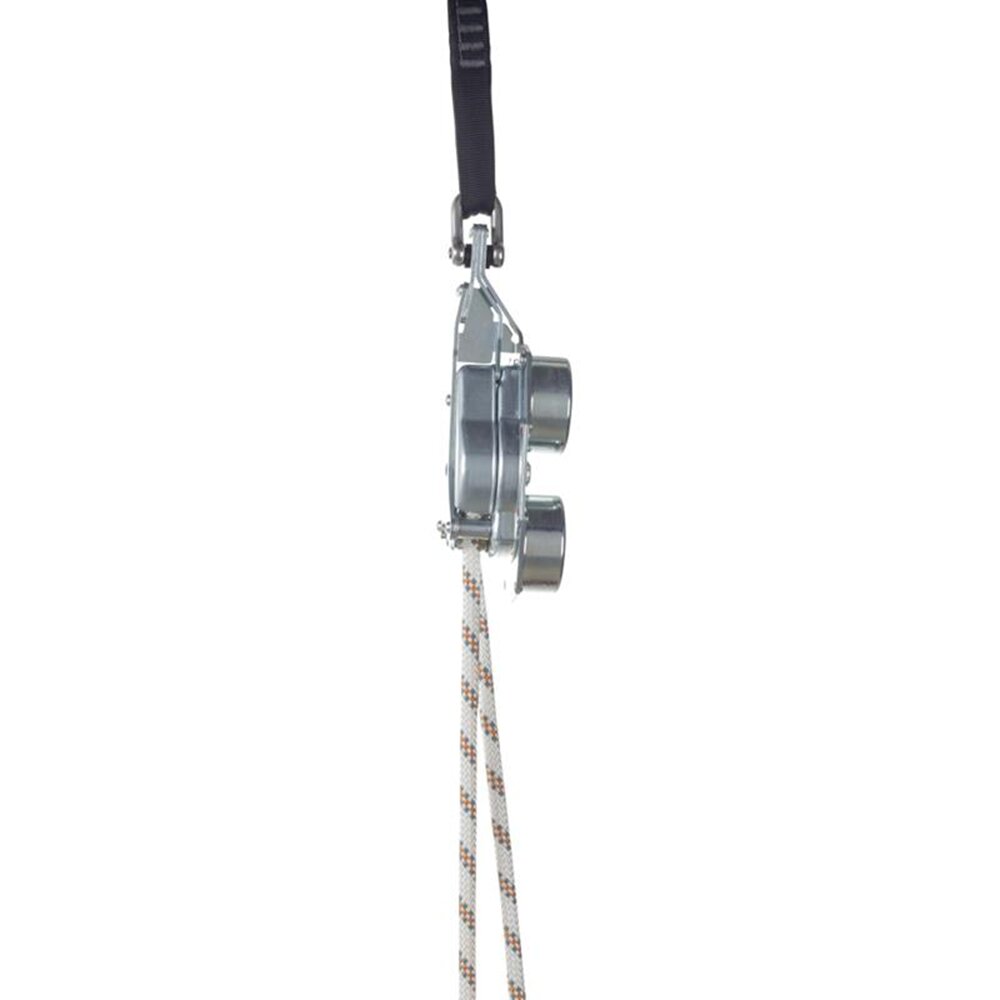

automatic and redundant brake system consists of 2 fly wheel brakes
brake drums are made of steel for high resistance
top 40 cm sling lanyard is equipped with a steel double trigger automatic locking connector with a gate opening of 21 mm for versatile and easy hanging

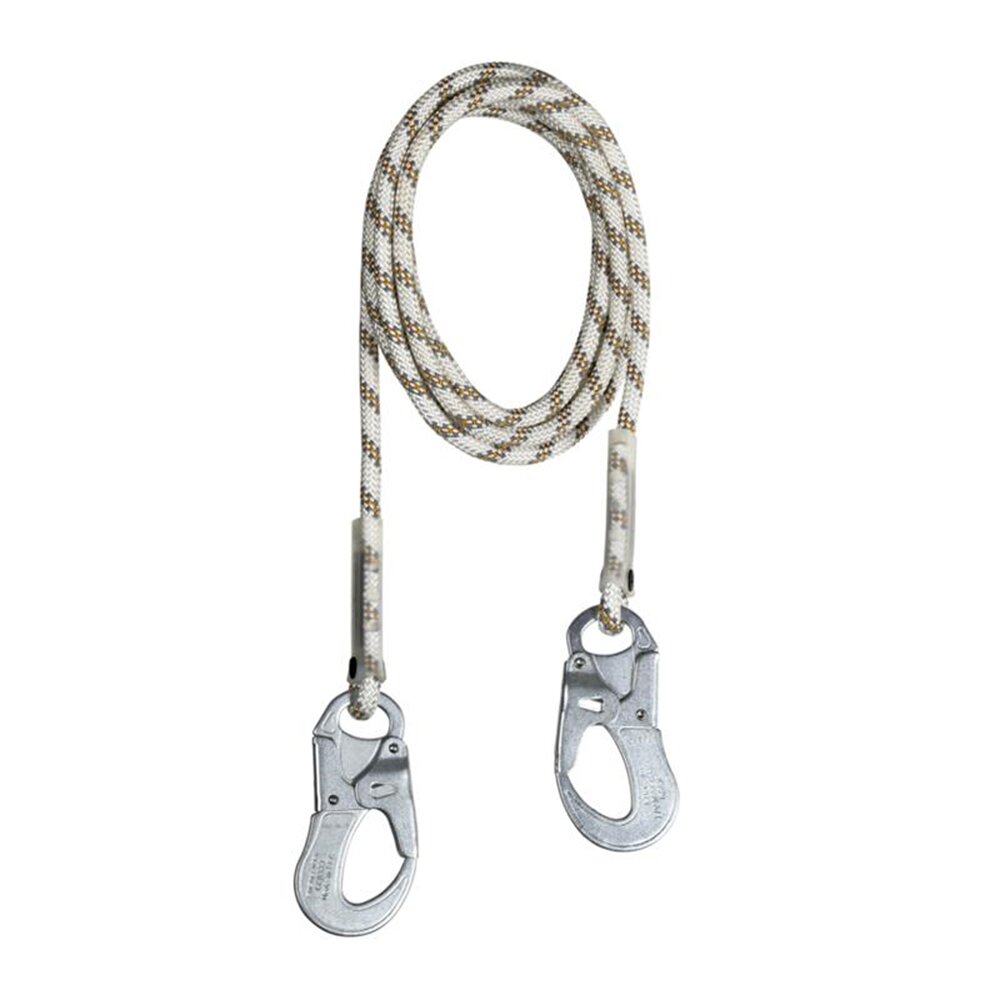

static polyamide kernmantle rope (acc. to EN 1891-A, ø 9.6 mm) can be up to 300 m long
both ends of the rope are equipped with a stitched eye and a steel double trigger automatic locking connector with a gate opening of 21 mm

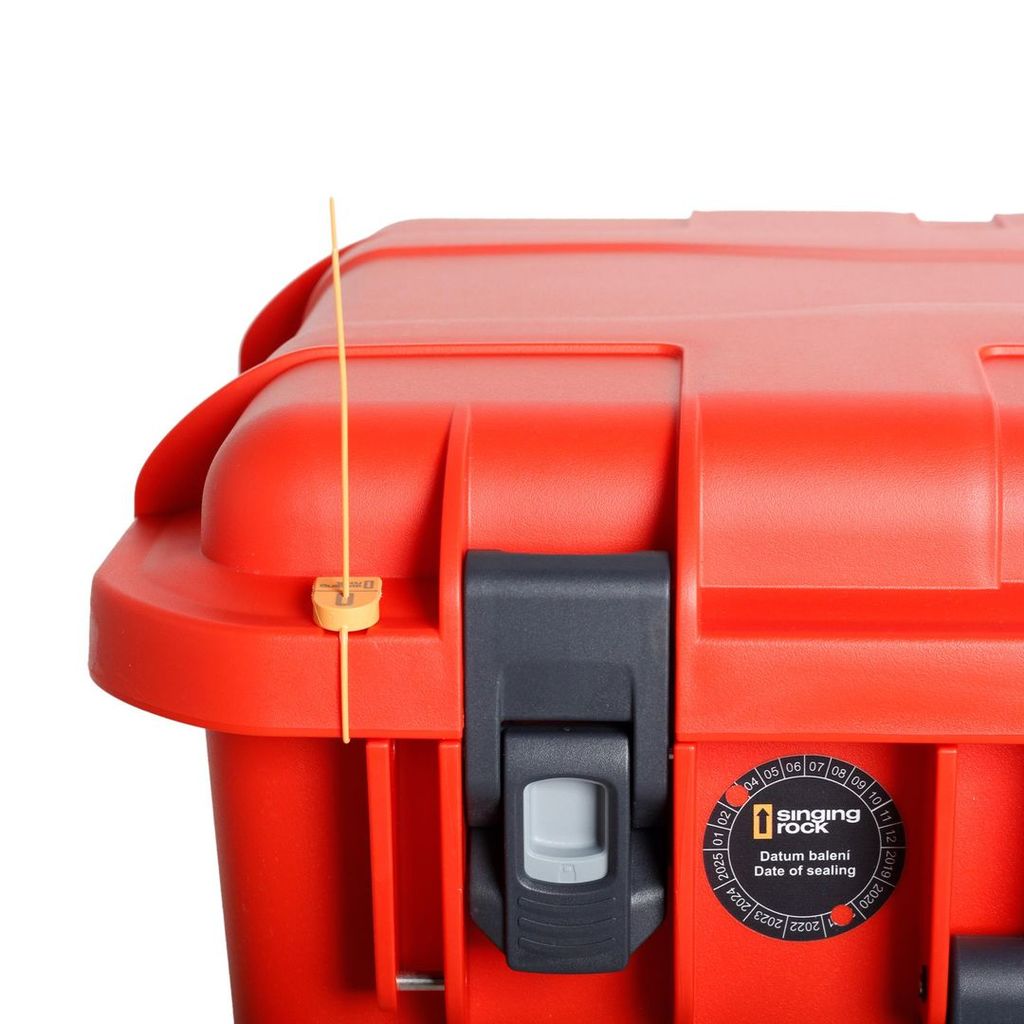

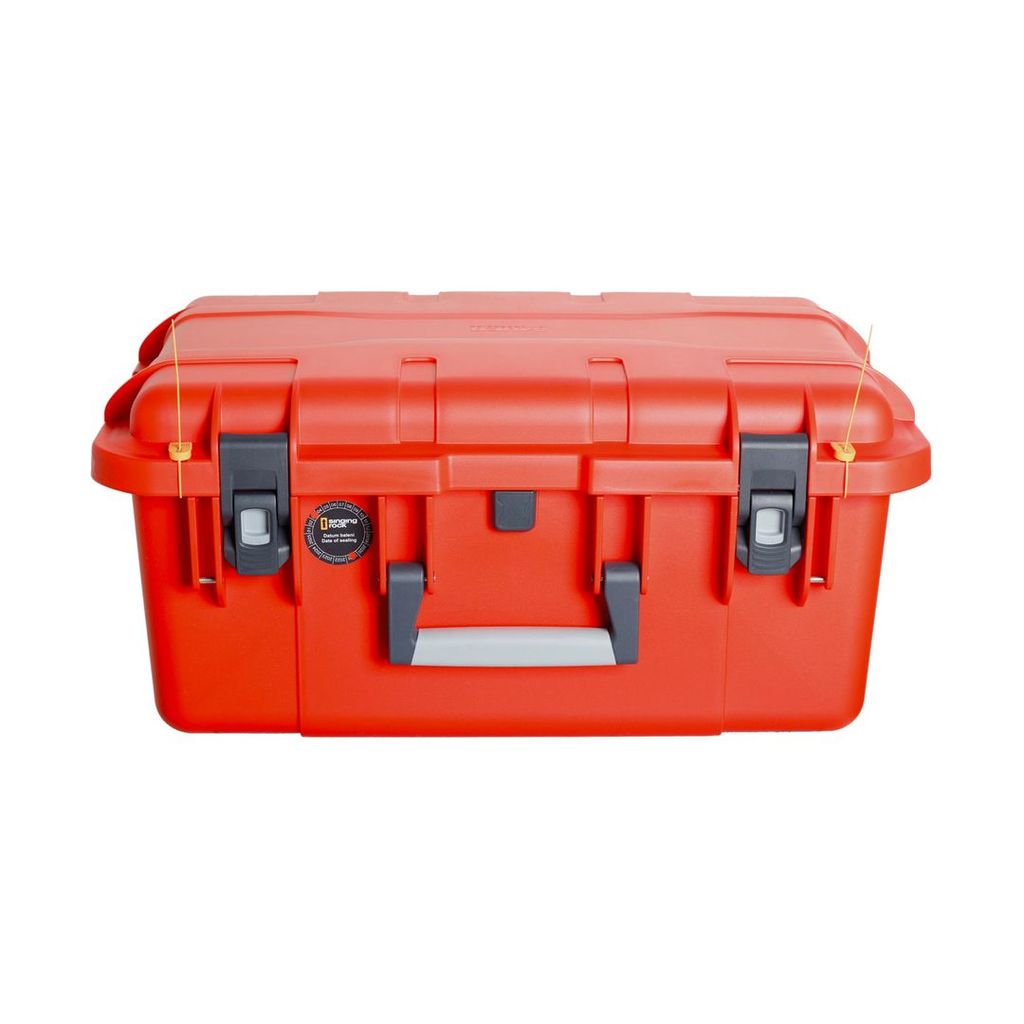

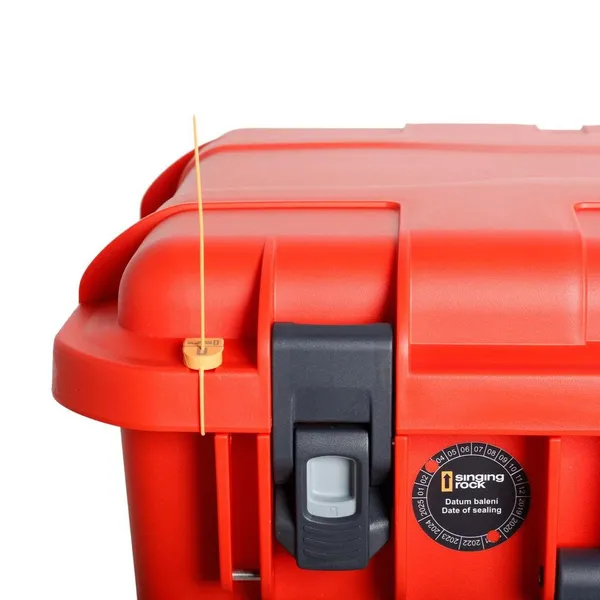

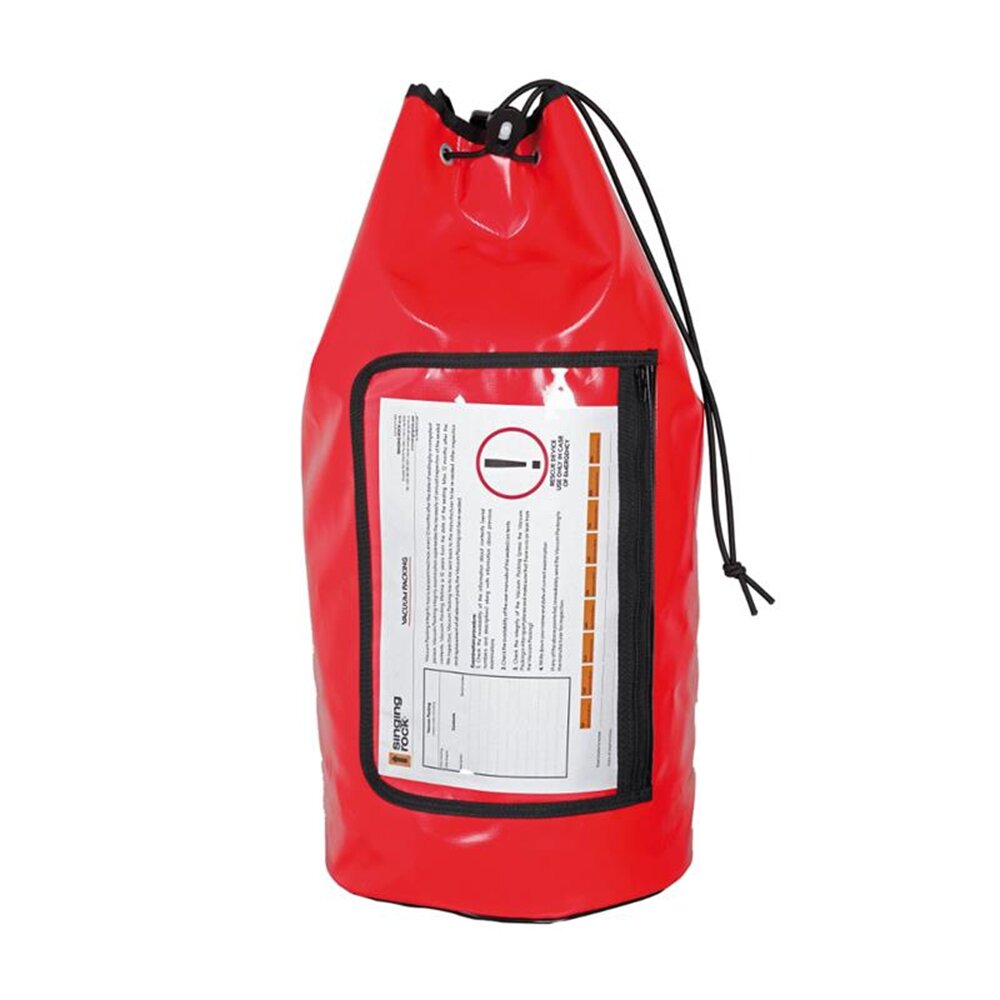

for a storage and transport we recommend a shock and waterproof plastic PROTECTIVE CASE in two sizes with a volume of 17 and 46 litres or a storage RESCUE BAG with a volume of 30 litres
when the device is stored in a sealed protective case an annual inspection is easier without the necessity of dismantling this device
learn more about the EvaQ HUB device

Standards

EN 1891
EN 341:2011

Specifications

Weight	1.75 kg (62 oz) + rope
Length	descent height max. 300 m (985 ft)
Working load	30 - 150 kg (66 - 330 lb) designed for 1 person
Descending speed	approx. 0.8 m/s
Temperature range	-40 °C to +65 °C
