Singing Rock Reactor 140

Singing Rock · ProfessionalProduct code: W44*

Shock absorber with a variety of lanyards.

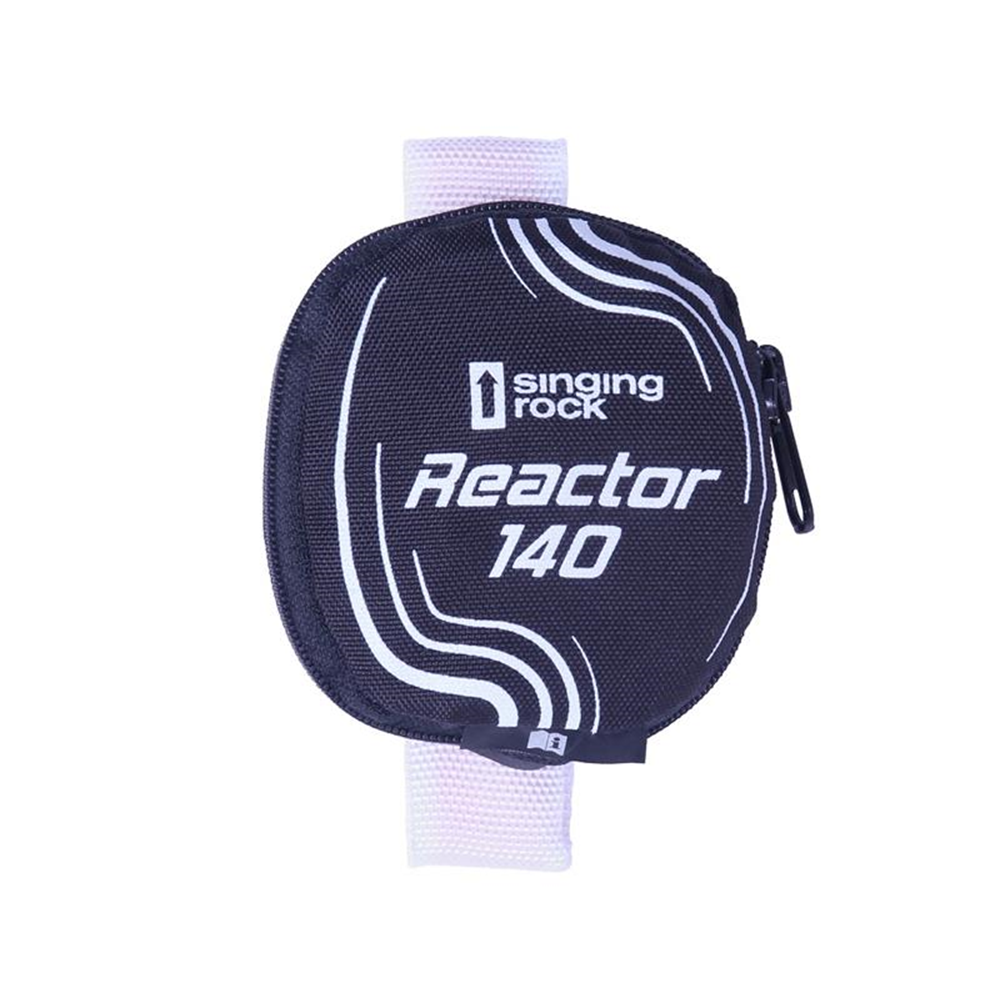

REACTOR 140

Shock absorber with a variety of lanyards (I, Y, webbing, rope, adjustable - see pic. 5). Newly designed for users with a maximum weight of 140 kg (including equipment).

Complete review:

1019, EN 355

Features

optional length of lanyards for diverse work
ideal for workers on structures, ladders and pylons
low weight and practical shape do not restrict a user at work
designed to safely capture a person weighting 140 kg (including equipment)
maximum active breaking length of shock absorber is 175 cm
cover is made of black synthetic rubber and Cordura with PU coating

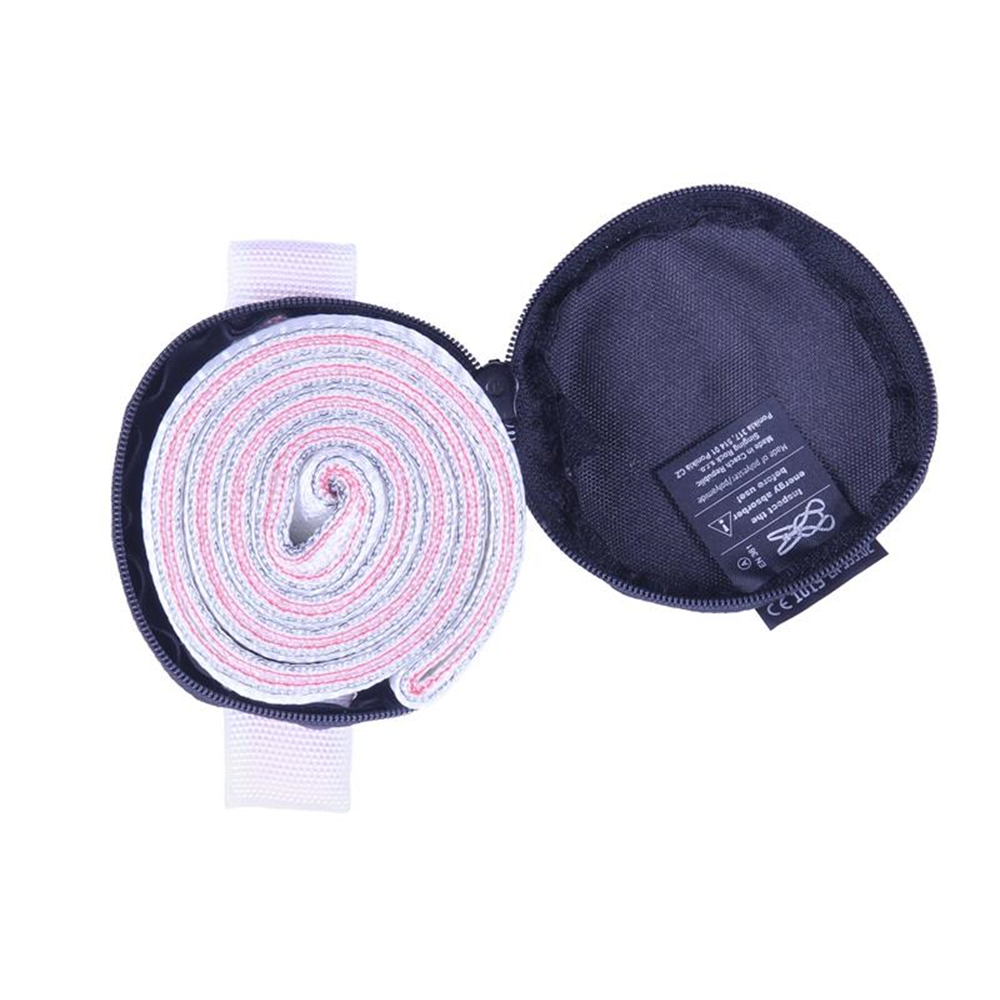

zipper around the perimeter of the cover for easy inspection of the energy absorber
intact orange indicator of energy absorber activation for easy fast check
orange indicator is threaded through the attaching loops and indicates an actual damage
any EN 362 certified connector can be sewn into the attachment loop
lanyards equipped with a light alloy ring or textile eye can be shorten in half
different webbing lengths are produced on customer´s request (maximum length including connectors and the shock absorber cannot extend 2 m)
unique production number for better traceability and inspection

Standards

EN 362
EN 355

Specifications

Weight	170 g • 6 oz (without any connector and lanyard)
Working load	140 kg • 309 lb

Type	Code	Connector	Length	Weight
Separate absorber	W4400WW00			170 g
"I" 85 cm	W4410W085	w/o	85 cm	250 g
	W4411W085	K370	100 cm	400 g
	W4412W085	K353	110 cm	750 g
	W4413W085	K355	120 cm	1230 g
"I" 155 cm	W4410W155	w/o	155 cm	290 g
	W4411W155	K370	170 cm	440 g
	W4412W155	K353	180 cm	830 g
	W4413W155	K355	190 cm	1270 g
"Y" 85 cm	W4420W085	w/o	85 cm	310 g
	W4421W085	2x K370	100 cm	610 g
	W4422W085	2x K353	110 cm	1290 g
	W4423W085	2x K355	120 cm	2210 g
"Y" 155 cm	W4420W155	w/o	155 cm	390 g
	W4421W155	2x K370	170 cm	690 g
	W4422W155	2x K353	180 cm	1390 g
	W4423W155	2x K355	190 cm	2310 g
EYE "Y" 155 cm	W4430W155	w/o	155 cm	390 g
	W4433W155	2x K355	190 cm	2310 g
RING "Y" 155 cm	W4440W155	w/o	155 cm	530 g
	W4441W155	2x K370	170 cm	830 g
	W4442W155	2x K353	180 cm	1510 g
ADJUST	W4470Y100	w/o	100-160 cm	420 g
	W4471Y100	K370	115-175 cm	570 g
	W4472Y100	K355	125-185 cm	920 g
ROPE "I" 85 cm	W4450X085	w/o	85 cm	290 g
	W4452X085	K353	110 cm	790 g
	W4453X085	K355	120 cm	1260 g
ROPE "I" 155 cm	W4450X155	w/o	155 cm	370 g
	W4452X155	K353	180 cm	870 g
	W4453X155	K355	190 cm	1340 g
ROPE "Y" 85 cm	W4460X085	w/o	85 cm	400 g
	W4462X085	2x K353	110 cm	1400 g
	W4463X085	2x K355	120 cm	2340 g
ROPE "Y" 155 cm	W4460X155	w/o	155 cm	520 g
	W4462X155	2x K353	180 cm	1520 g
	W4463X155	2x K355	190 cm	2460 g
