Singing Rock EvaQ Hub

Singing Rock · ProfessionalProduct code: W1511X000

Descender and rescue device.

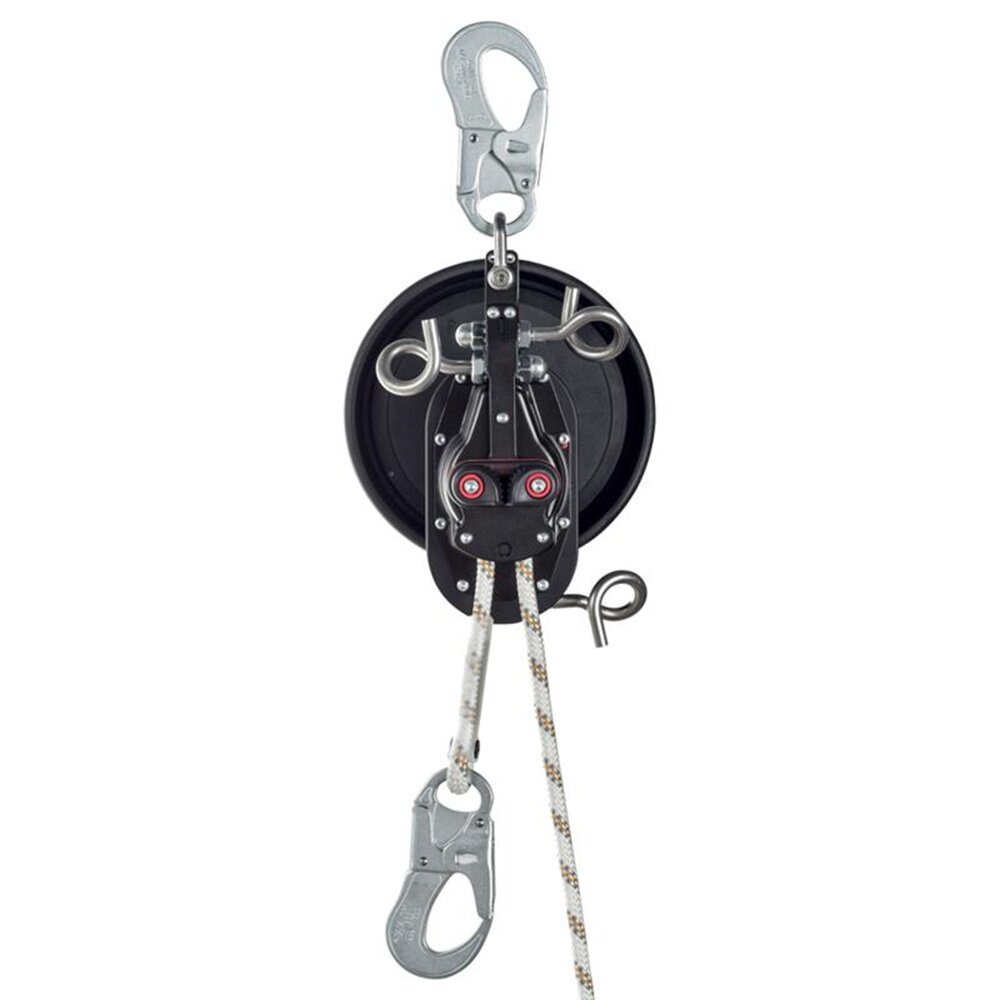

EvaQ Hub

Descender and rescue device with lifting function for height rescue by fire fighters, industrial climbers and others when exposed to a danger at great heights such as cable cars, outdoor parks, wind power plants or skyscrapers. Also suitable for quick and easy rescue and even for self-rescue of many threatened people.

Certification: CE 0511,EN 1496:2007-B, EN 341:2011-1A

Features

designed for a working load of 225 kg (2 persons)
automatic and redundant brake system consists of 2 fly wheel brakes
brake drums are made of steel for high resistance
equipped with a handwheel made of durable plastic for easy and save operation even in hard conditions and under a full load

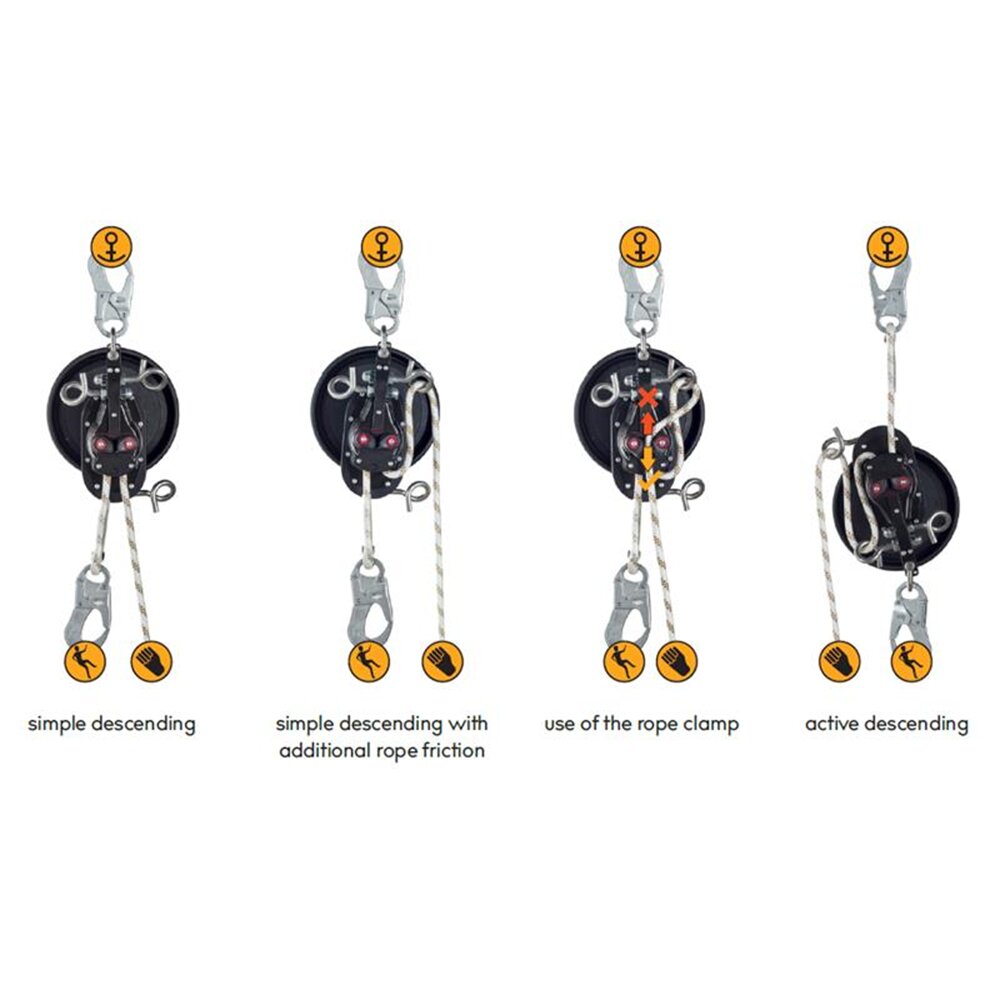

three stainless steel eyebolts ensure smooth descend speed control and multiple operation modes
back side rope clamp facilitates lifting operation
to make the lifting easier the device is equipped with a hexagon adapter for accu-drill connection
attachment point is equipped with a steel double trigger automatic locking connector with a gate opening of 21 mm for versatile and easy hanging
static polyamide kernmantle rope (acc. to EN 1891-A, ø 9.6 mm) can be up to 300 m long
both ends of the rope are equipped with a stitched eye and a steel double trigger automatic locking connector with a gate opening of 21 mm
for a storage and transport we recommend a shock and waterproof plastic PROTECTIVE CASE in two sizes with a volume of 17 and 46 litres or a storage RESCUE BAG with a volume of 30 litres
when the device is stored in a sealed protective case an annual inspection is easier without the necessity of dismantling this device
learn more about the EvaQ HUB device

Standards

EN 1891
EN 1496:2007
EN 341:2011

Specifications

Weight	3.4 kg (121 oz) + rope
Length	descent height max. 300 m (985 ft)
Working load	30 - 225 kg (66 - 495 lb) designed for 2 persons
Descending speed	approx. 0.8 m/s
Temperature range	-40 °C to +65 °C
